Inductor

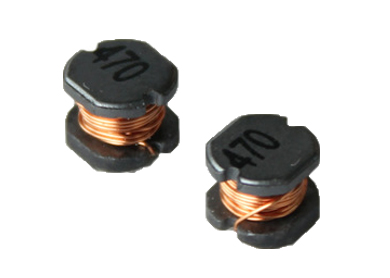

Surface Mount Unshielded Power Inductors

Product Classification

Multilayer Ceramic Inductor Multilayer Ferrite Inductor Multilayer Power Inductor Wire Wound High Frequency Ceramic Inductor Wire Wound High Q Ceramic Inductor Wire Wound High Frequency Ferrite Inductor Wire Wound Small Size Power Inductor Surface Mount Unshielded Power Inductors Surface Mount Shielded Power Inductors Surface Mount Shielded High Power Inductors NR Coating Power Inductor Molding Small Size Power Inductor Molding Power Inductor

Series Name	L	W	T	Inductance (uH)@TEST FREQUENCY	TOL.(±%)	RDC (Ω) MAX.	Rated Current.(A)	SPQ(REEL)
Series Name	3.5 4.5 5.8 7.8 10	3 4 5.2 7 9	2.1 3.2 4.5 5 4 5.4	1.0~220@KHz 1.0~330@KHz 1.0~470@KHz 1.0~680@KHz 1.0~1000@KHz 1.2~1000@KHz	K M	0.045~5.7 0.045~5.3 0.03~4.7 0.015~0.3 0.03~3.6 0.008~3.0 0.008~2.7	0.14~2.2 0.18~2.56 0.2~4.5 0.19~5.9 0.23~11.2 0.26~9.0 0.2~10.5	3000 2000 1500 1000 800
