TVS

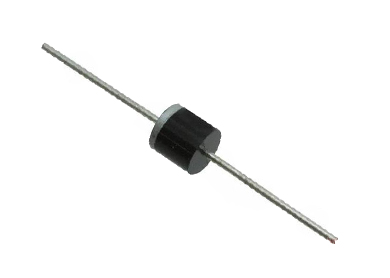

Package:P600 ,Ppp:5-20KW

Product Classification

SMF SMA SMB 1.0SMB SMC SMD 5.0SMD SM6S SM8S P600

Part Number（Ubi）	Part Number（Bi）	Vrwm（V)	VBR @ IT Min(V)	VBR @ IT Max(V)	IT（mA）	IR @ VRWM（uA）	VC_Max（V)	IPP_Max（A)
Part Number（Ubi）	5KP5.0CA 5KP6.0CA 5KP6.5CA 5KP7.0CA 5KP7.5CA 5KP8.0CA 5KP8.5CA 5KP9.0CA 5KP10CA 5KP11CA 5KP12CA 5KP13CA 5KP14CA 5KP15CA 5KP16CA 5KP17CA 5KP18CA 5KP20CA 5KP22CA 5KP24CA 5KP26CA 5KP28CA 5KP30CA 5KP33CA 5KP36CA 5KP40CA 5KP43CA 5KP45CA 5KP48CA 5KP51CA 5KP54CA 5KP58CA 5KP60CA 5KP64CA 5KP70CA 5KP75CA 5KP78CA 5KP85CA 5KP90CA 5KP100CA 5KP110CA 5KP120CA 5KP130CA 5KP150CA 5KP160CA 5KP170CA 5KP180CA 5KP190CA 5KP200CA 5KP210CA 5KP220CA 5KP250CA 6.6KP15CA 6.6KP16CA 6.6KP18CA 6.6KP20CA 6.6KP22CA 6.6KP24CA 6.6KP26CA 6.6KP28CA 6.6KP30CA 6.6KP33CA 6.6KP36CA 6.6KP40CA 6.6KP43CA	5 6 6.5 7 7.5 8 8.5 9 10 11 12 13 14 15 16 17 18 20 22 24 26 28 30 33 36 40 43 45 48 51 54 58 60 64 70 75 78 85 90 100 110 120 130 150 160 170 180 190 200 210 220 250	6.4 6.67 7.22 7.78 8.33 8.89 9.44 10 11.1 12.2 13.3 14.4 15.6 16.7 17.8 18.9 20 22.2 24.4 26.7 28.9 31.1 33.3 36.7 40 44.4 47.8 50 53.3 56.7 60 64.4 66.7 71.1 77.8 83.3 86.7 94.4 100 110 111 122 133 144 167 178 189 211 224 237 246 277	7 7.37 7.98 8.6 9.21 9.83 10.4 11.1 12.3 13.5 14.7 15.9 17.2 18.5 19.7 20.9 22.1 24.5 26.9 29.5 31.9 34.4 36.8 40.6 44.2 49.1 52.8 55.3 58.9 62.7 66.3 71.2 73.7 78.6 86 92.1 95.8 104 111 123 135 147 159 185 197 209 233 247 263 272 306	10 1 5	150 100 50 20 10 5 2 1	9.2 10.3 11.2 12 12.9 13.6 14.4 15.4 17 18.2 19.9 21.5 23.2 24.4 26 27.6 29.2 32.4 35.5 38.9 42.1 45.4 48.4 53.3 58.1 64.5 69.4 72.7 77.4 82.4 87.1 93.6 96.8 103 113 121 126 137 146 162 177 193 209 243 259 275 292 310 329.2 349.5 371.1 425	554 486 448 417 388 367 347 325 294 275 252 233 216 205 193 181 172 155 141 129 119 110 103 93.9 86.1 77.6 72.1 68.8 64.7 60.7 57.5 53.5 51.7 48.6 44.3 41.4 39.7 36.5 34.3 30.9 28.3 26 24 20.6 19.3 18.2 17.5 16.5 15.5 14.6 13.7 12 270.5 253.8 226 203.7 186 169.6 156.8 145.4 136.3 123.8 113.6 102.3 95.1
